Refrigerant Air Dryer
Innovation Core Technology
The Fifth Generation Of Ultra-Cold. Environmentally Refrigerant Air Dryer.
Features
| Standar Condition | |
|---|---|
|
Inlet Air Temperature |
≤ 60°C |
|
Cooling Method |
Air Cooling |
|
Ambient Temperature |
2-45°C |
|
Pressure DewPoint |
2-10°C |
|
Working Pressure |
Up to 16 Bar |
|
Pressure Drop |
≤ 0,2 Bar |
| Model | Air Capacity (M³/Min) | Connection Size | Matched Compressor (kW/Hp) | Consumption Power (kW) | Weight (Kg) | Dimension L x W x H (mm) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
🟢 REF 18 |
1,8 |
G 1" |
7,5 |
10 |
0,6 |
68 |
700 |
420 |
820 |
||
|
🟢 REF 28 |
2,8 |
G 1" |
15 |
20 |
0,9 |
73 |
700 |
420 |
820 |
||
|
🟢 REF 40 |
4,0 |
G 1 ½ |
22 |
30 |
1,1 |
97 |
900 |
540 |
940 |
||
|

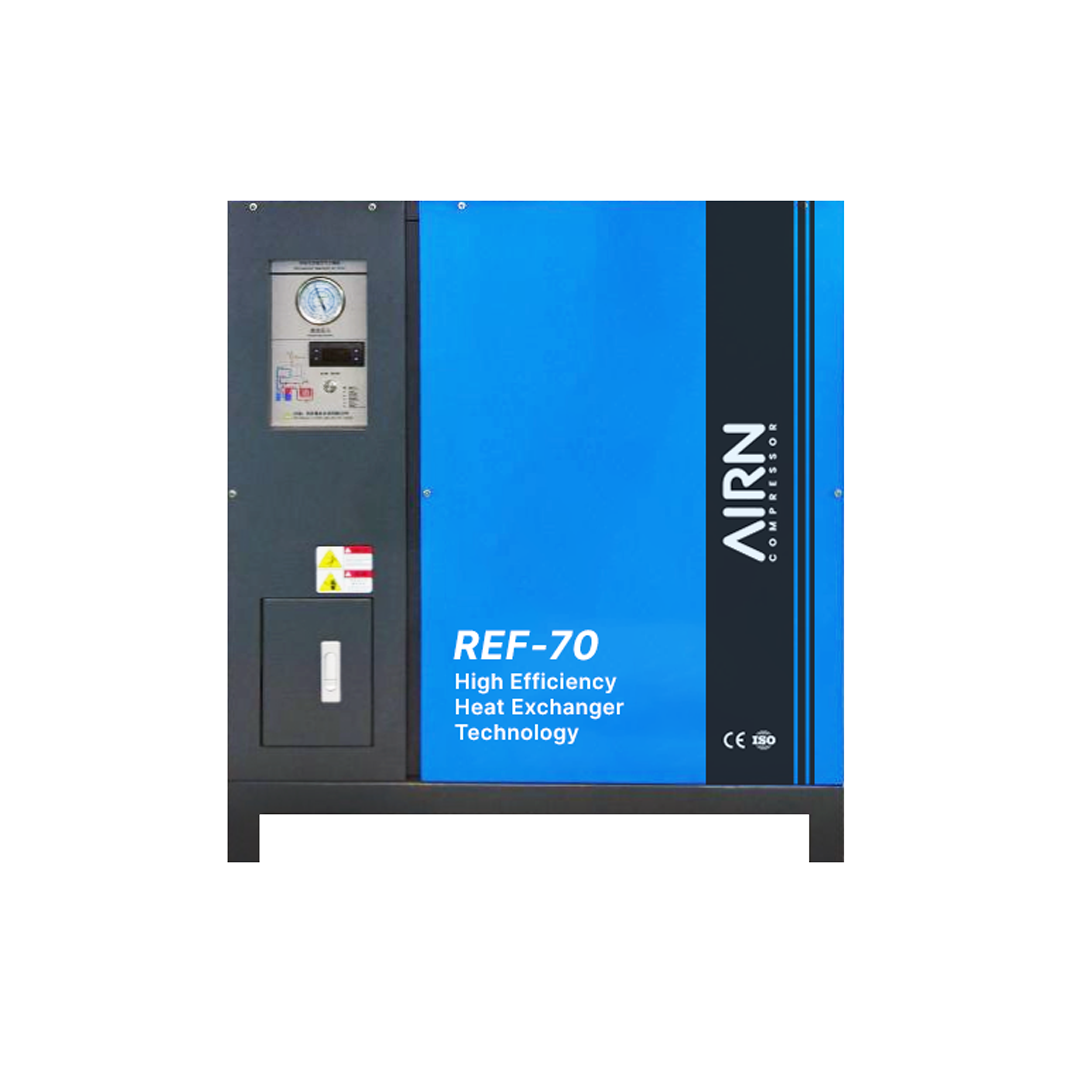

🟢 REF 70 |
7,0 |
G 1 ½ |
37 |
50 |
1,6 |
118 |
1050 |
540 |
940 |
||
|
🟢 REF 110 |
11,0 |
G 2" |
55 |
75 |
2,3 |
173 |
1100 |
600 |
1020 |
||
|
🟠 REF 150 |
15,0 |
G 2" |
76 |
100 |
2,8 |
179 |
1240 |
600 |
1020 |
||
|
🟠 REF 190 |
19,0 |
DN 65 |
90 |
120 |
3,0 |
212 |
1300 |
700 |
1160 |
||
|
🟠 REF 230 |
23,0 |
DN 65 |
90 |
120 |
3,0 |
212 |
1300 |
700 |
1160 |
||
|
🟠 REF 290 |
29,0 |
DN 80 |
150 |
200 |
4,5 |
274 |
1400 |
800 |
1260 |
||
|
🟠 REF 330 |
33,0 |
DN 80 |
160 |
215 |
5,3 |
354 |
1500 |
850 |
1380 |
||
|
🟠 REF 390 |
39,0 |
DN 100 |
200 |
270 |
6,0 |
420 |
1600 |
850 |
1730 |
||
|
🟠 REF 470 |
47,0 |
DN 100 |
200 |
270 |
6,8 |
485 |
1700 |
900 |
1500 |
||
|
🟠 REF 550 |
55,0 |
DN 125 |
250 |
270 |
10,0 |
585 |
1900 |
950 |
1620 |
||
|
🟠 REF 670 |
67,0 |
DN 150 |
250 |
335 |
10,5 |
630 |
1900 |
950 |
1620 |
||
|
🟠 REF 750 |
75,0 |
DN 150 |
315 |
422 |
11,3 |
815 |
2100 |
1000 |
1790 |
||
|
🟠 REF 850 |
85,0 |
DN 150 |
355 |
476 |
13,5 |
1106 |
2100 |
1400 |
2060 |
||
|
🟠 REF 950 |
95,0 |
DN 200 |
400 |
536 |
15,0 |
1223 |
2200 |
1450 |
2200 |
||
|
🟠 REF 1100 |
110,0 |
DN 200A |
450 |
603 |
18,0 |
1685 |
2400 |
1500 |
2300 |
||
| Voltage | 🟢 220v / 50Hz / 1 Phase | 🟠 380v / 50Hz / 3 Phase |
|---|
